The PathFindIR incorporates an uncooled 320x240 pixels micro bolometer. This maintenance-free system delivers crisp video images which can be displayed on virtually any display that accepts composite video.

The PathFindIR is equipped with a 19-mm wide-angle lens. It gives you an extremely wide field of vision (36°), resulting in excellent situational awareness.

The PathFindIR combined with the complete flameproof enclosure is extremely rugged. Its vital core is well protected against humidity and water. The PathFindIR camera itself operates between -40 °C and +80 °C.

The camera also has a built-in heater to defrost its protective window. The heater is capable of defrosting a 2-mm layer of ice frozen to the window within 15 minutes when ambient temperature is -30 °C and wind speed against the window is 100 km/h. The heater is automatically powered when the window temperature is less than +4 °C and powered down when the window temperature is more than +6 °C. This ensures a clear lens and perfect infrared images displayed on your monitor even in extremely cold environments.

Features

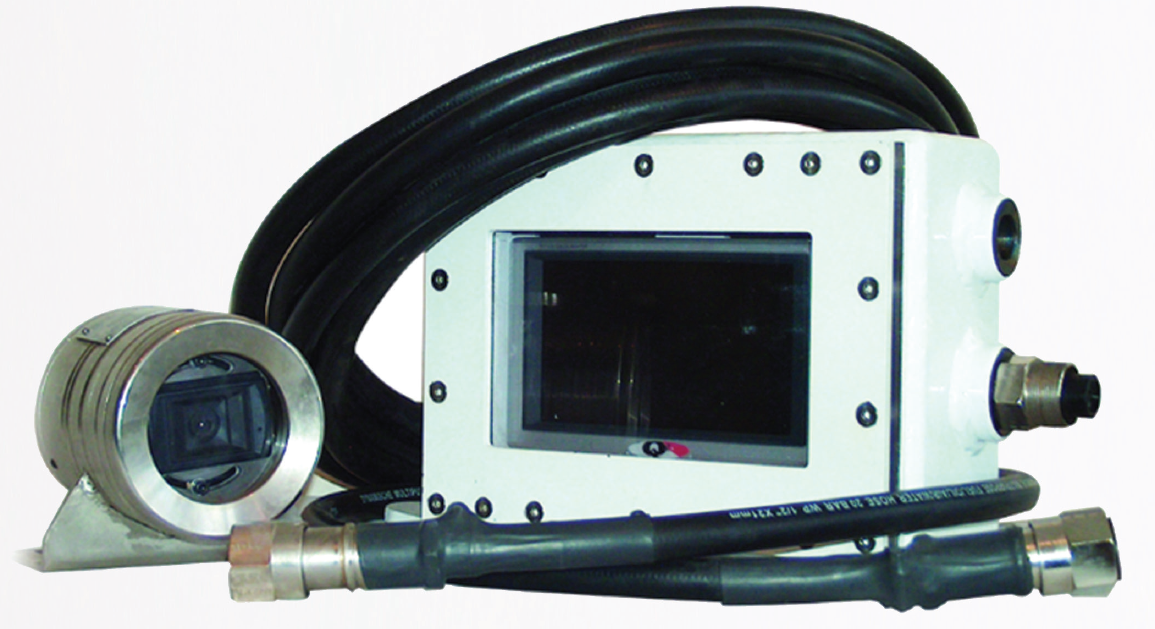

• A flameproof camera housing fitted with a FLIR PathFindIR camera

• A trailing cable fitted to the back of the housing to customer’s specified length for wiring purposes

• A flameproof monitor housing, fitted with a monitor/screen to display the camera footage

• Alternatively the dashboard of a machine can be fitted with a monitor and the camera can be wired to it

• Custom designs can also be done to house both the camera and monitor according to customer specification flameproof monitor housing, fitted with a monitor/screen to display the camera footage
